선광장 설비 기계는 주로 광물 처리와 관련된 산업에서 사용되는 기계 장비로, 원광에서 유용한 광물을 분리하고 정제하는 역할을 합니다. 주요 용도는 광석의 선별, 세척, 분쇄, 분리 등이 있으며, 효율적인 자원 추출과 품질 향상에 기여합니다. 선광장 설비는 광산업, 재활용 산업에서 광물 자원을 가공하는 데 필수적인 역할을 합니다.

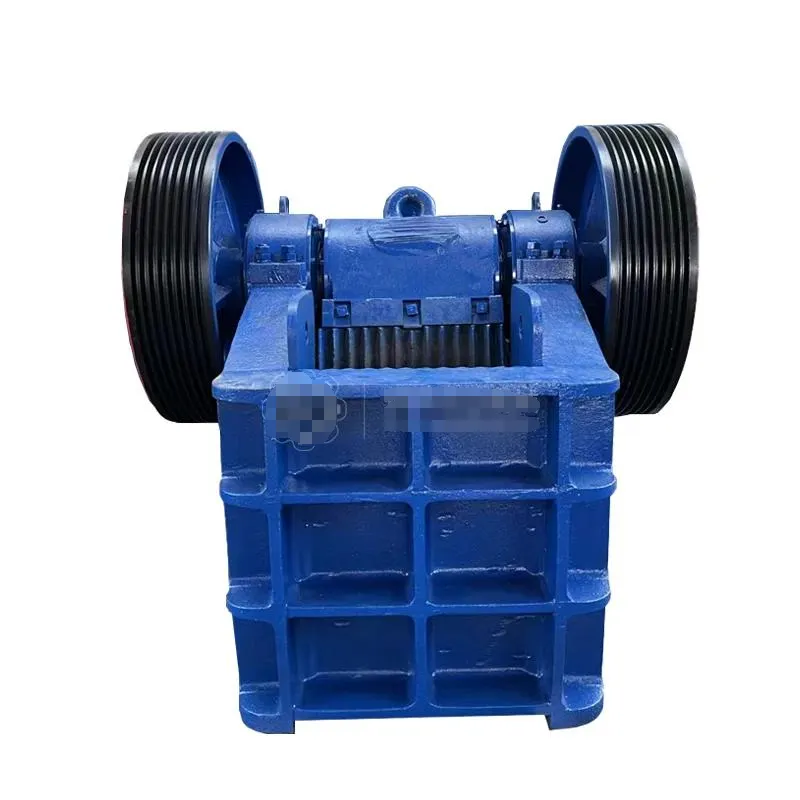

Jaw crusher:
-Specification
1.model : PE250400
2.voltage:3 phase 220V ,60HZ,15KW
3.max feeding size: 210mm
4.output size: 20-60mm
5.capacity:5-21 tph
6.rotation:300r/min
7.weight: 2.8tons
8.dimension:13001090*1270mm

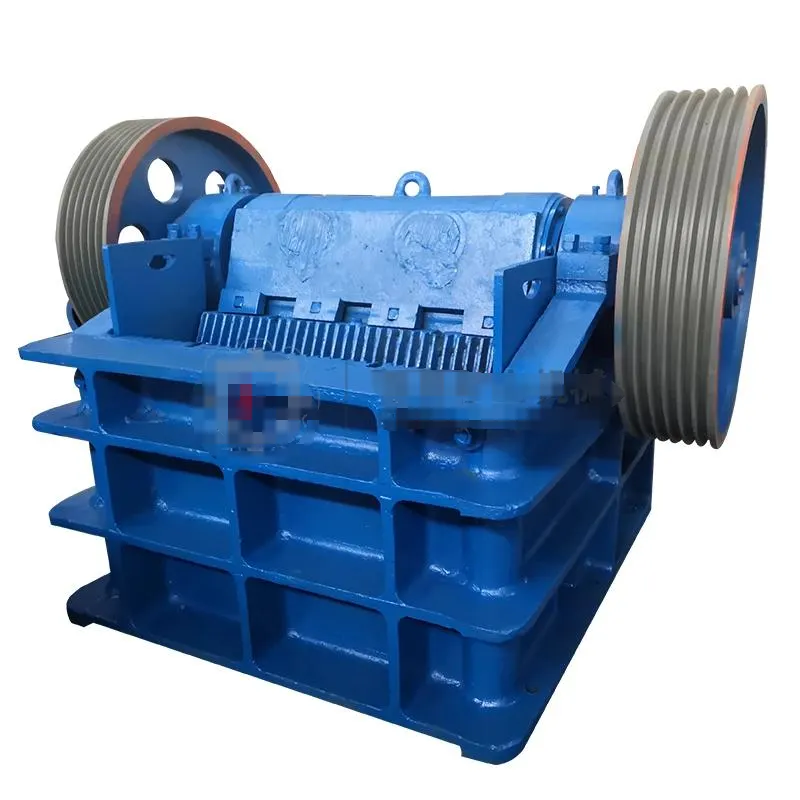

Jaw crusher:
-Specification
1.model : PEX150*750
2.voltage:3 phase 220V ,60HZ,15KW
3.max feeding size: 120mm
4.output size: <25mm
5.capacity:8-25 tph
6.rotation:300r/min
7.weight: 3.5tons
8.dimension:1200x1530x1060mm

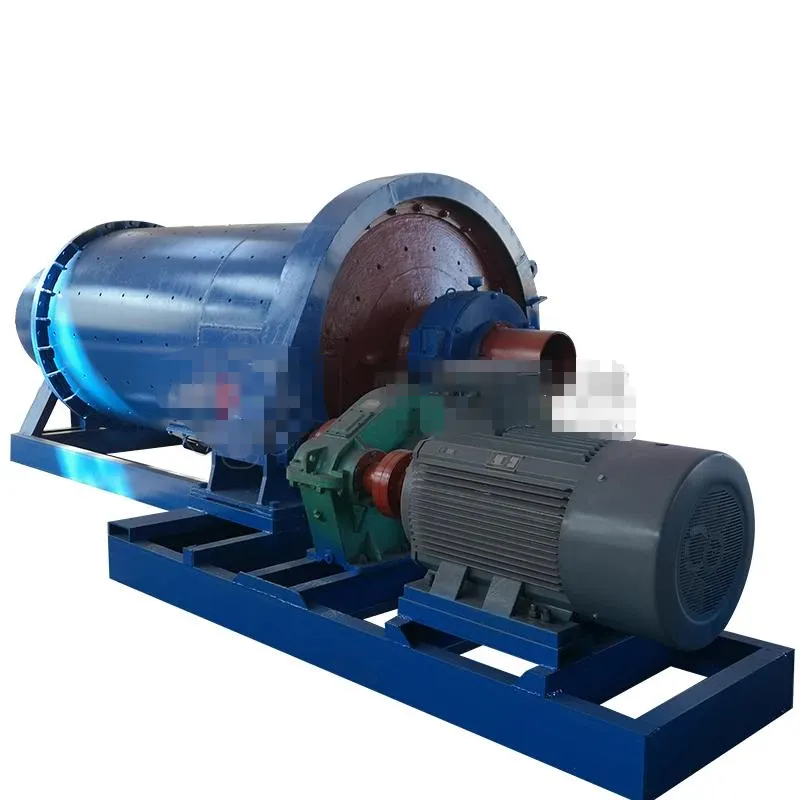

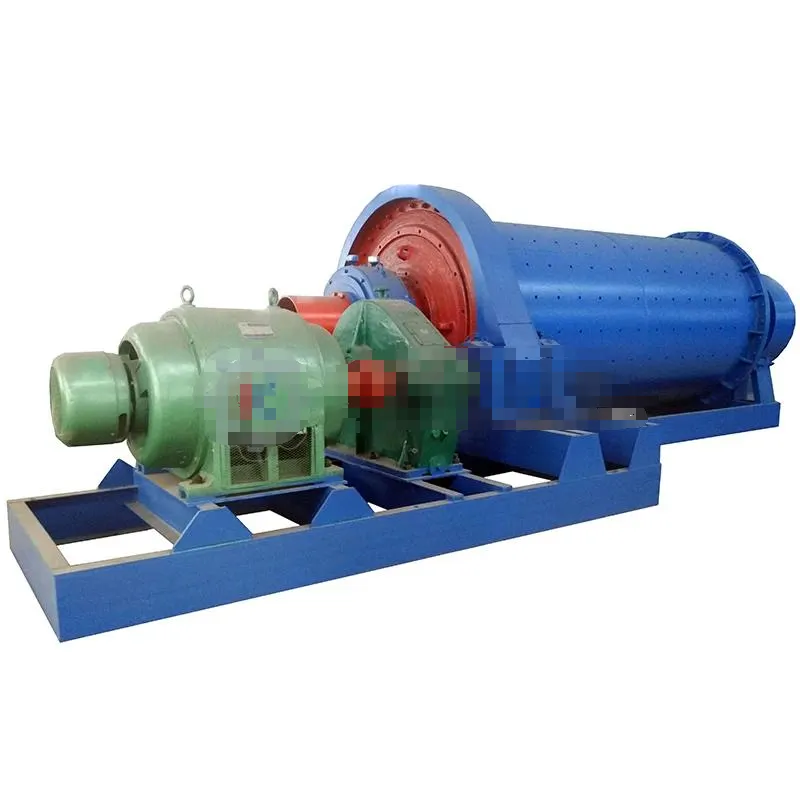

Ball mill
-Specification
1.model : 1500x3000
2.Motor:8-75kw, motor and reducer warranty 3
years
3.max feeding size: 25mm
4.output size: 2-0.074mm
5.capacit:5t/h
6.loading balls: 8 tons
7.Speed:30.7r/min
8.Effective volume: 4.5m3
9.steel thickness: 14mm
10.weight:16.5tons
11.dimension:7430x2930x2060mm
12.cyclinder diameter :1500mm, length:3000mm,
13.Bearing: 40Cr, surface hardening 48 ~ 55HRC, 3
years warranty
14.Big gear material is ZG310-570 ,warranty 3 years
1.
end cover material is ZG310-570
2.
small gear material is ZG310-570 (quenching and forging treatment)
Ball mill
-Specification
1.model : 1800x3000
2.Motor:8-130kw, motor and reducer warranty 3
years
3.max feeding size: 25mm
4.output size: 2-0.074mm
5.capacit:10t/h
6.loading balls: 12 tons
7.Speed:25.04r/min
8.Effective volume: 6.7m3
9.steel thickness: 16mm
10.weight:29tons
11.dimension:9525x3960x2250mm
12.cyclinder diameter :1830mm, length:3000mm,
13.Bearing: 40Cr, surface hardening 48 ~ 55HRC, 3
years warranty
14.Big gear material is ZG310-570 ,warranty 3 years
1.
end cover material is ZG310-570
2.
small gear material is ZG310-570
(quenching and forging treatment)

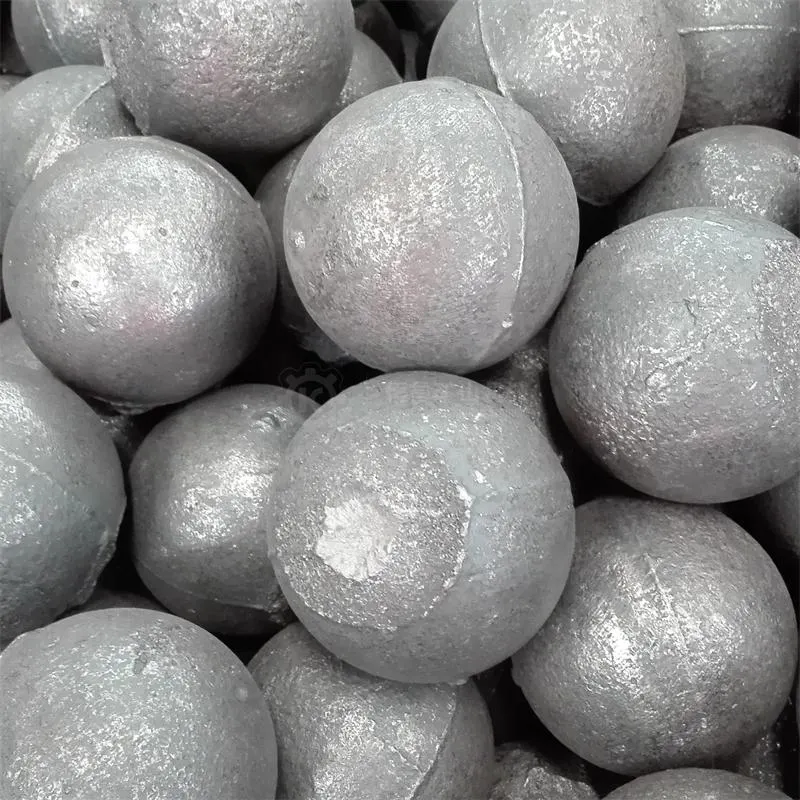

Steel balls
-Specification
1.
Specification: 40-120mm
2.
Material: Medium chrome alloy
3.Hardness: ≥45
4.Packing: woven bag packing
5.Quantity: One ton per bag
6.30 bags

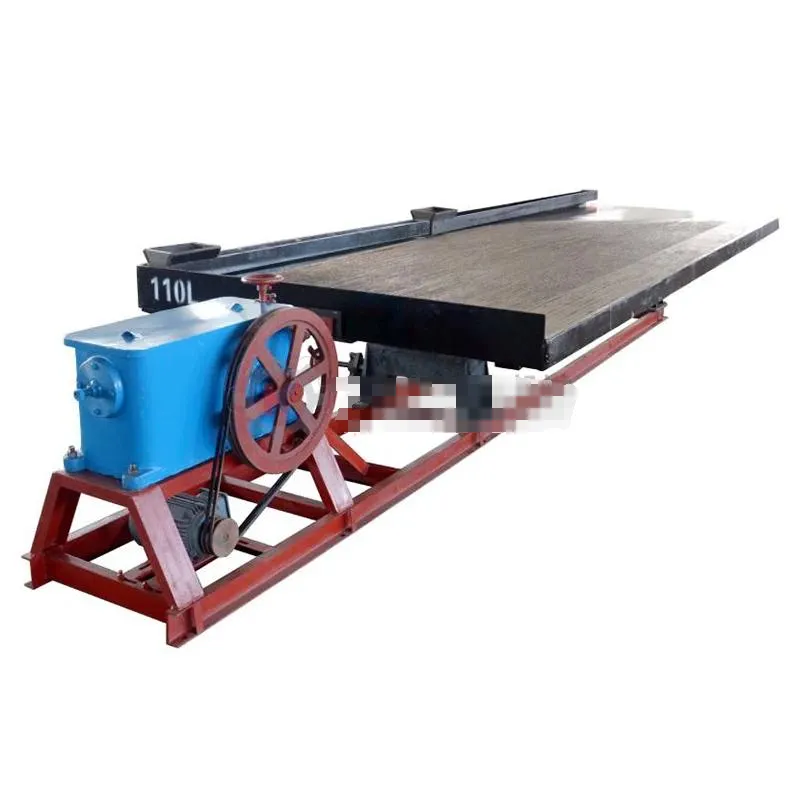

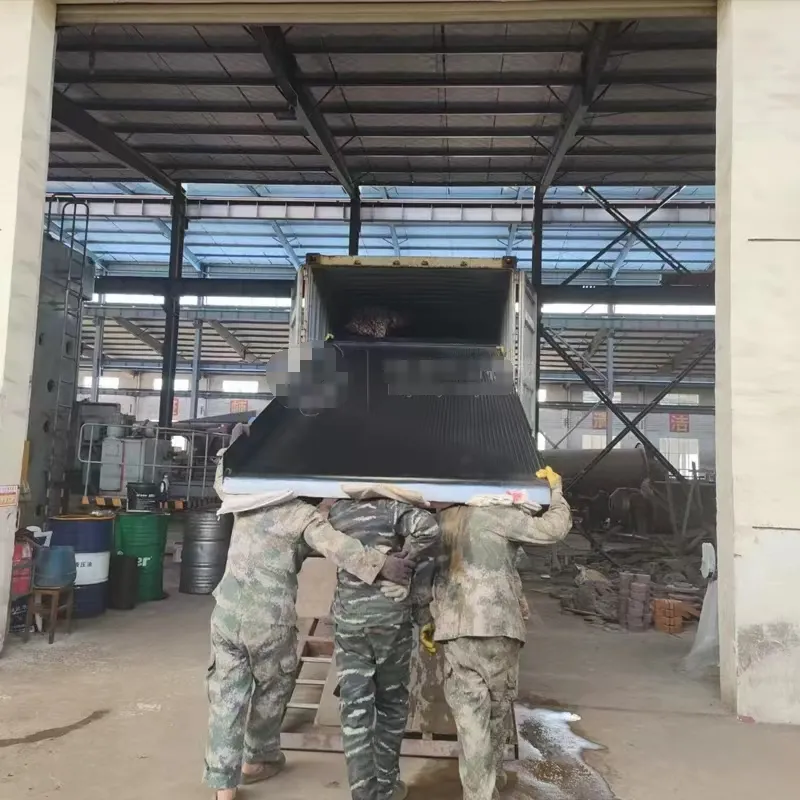

Shaking table
-Specification
1.model : 6S-4450x1855x1546
2.lenngt 4550mm
3.width 1855mm,
4.Motor :1.1KW
5.feeding size: 2-0.074mm
6.capacity:0.6-2.5 tph
7.stroke:8-22mm
8. cross slope:1-4
9.feed density:15-30%
10.weight:800kg
11.Beneficiation area:7.6m2
12.Water consumption:0.7-1 t/h

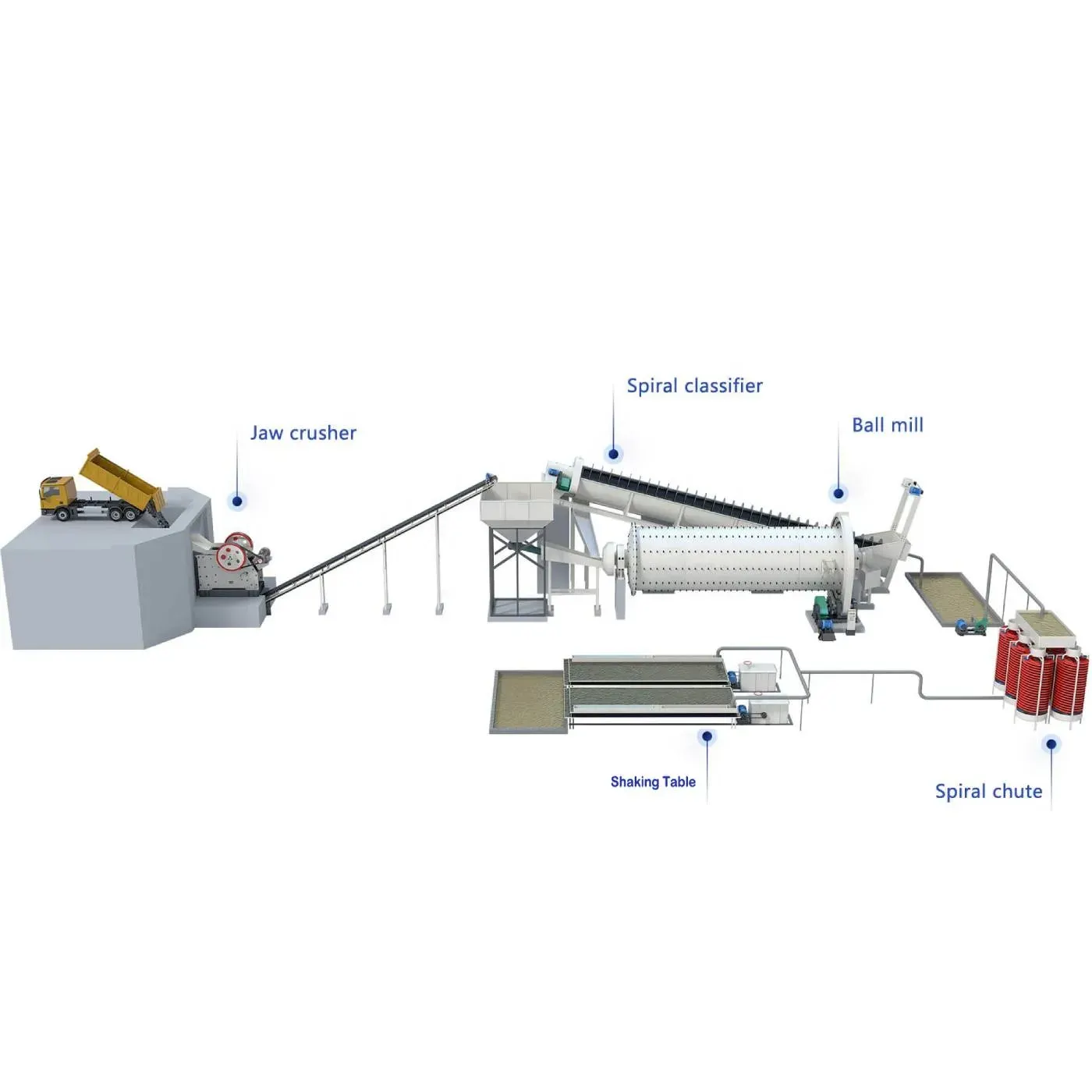

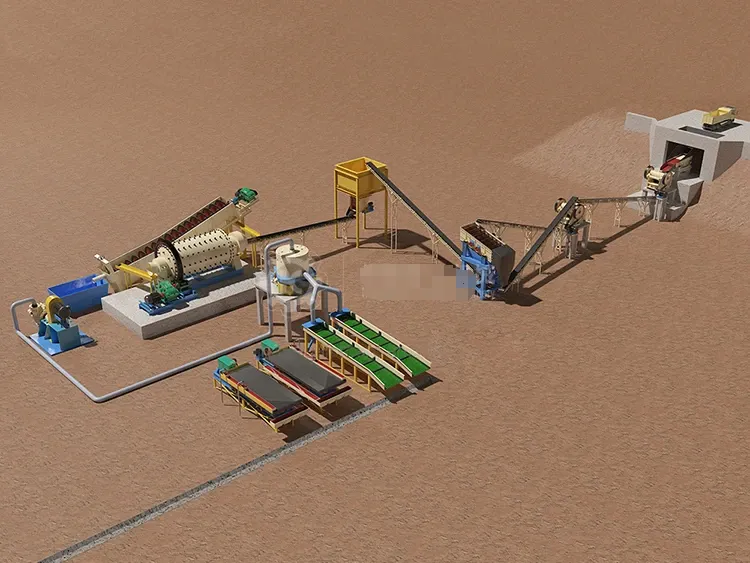

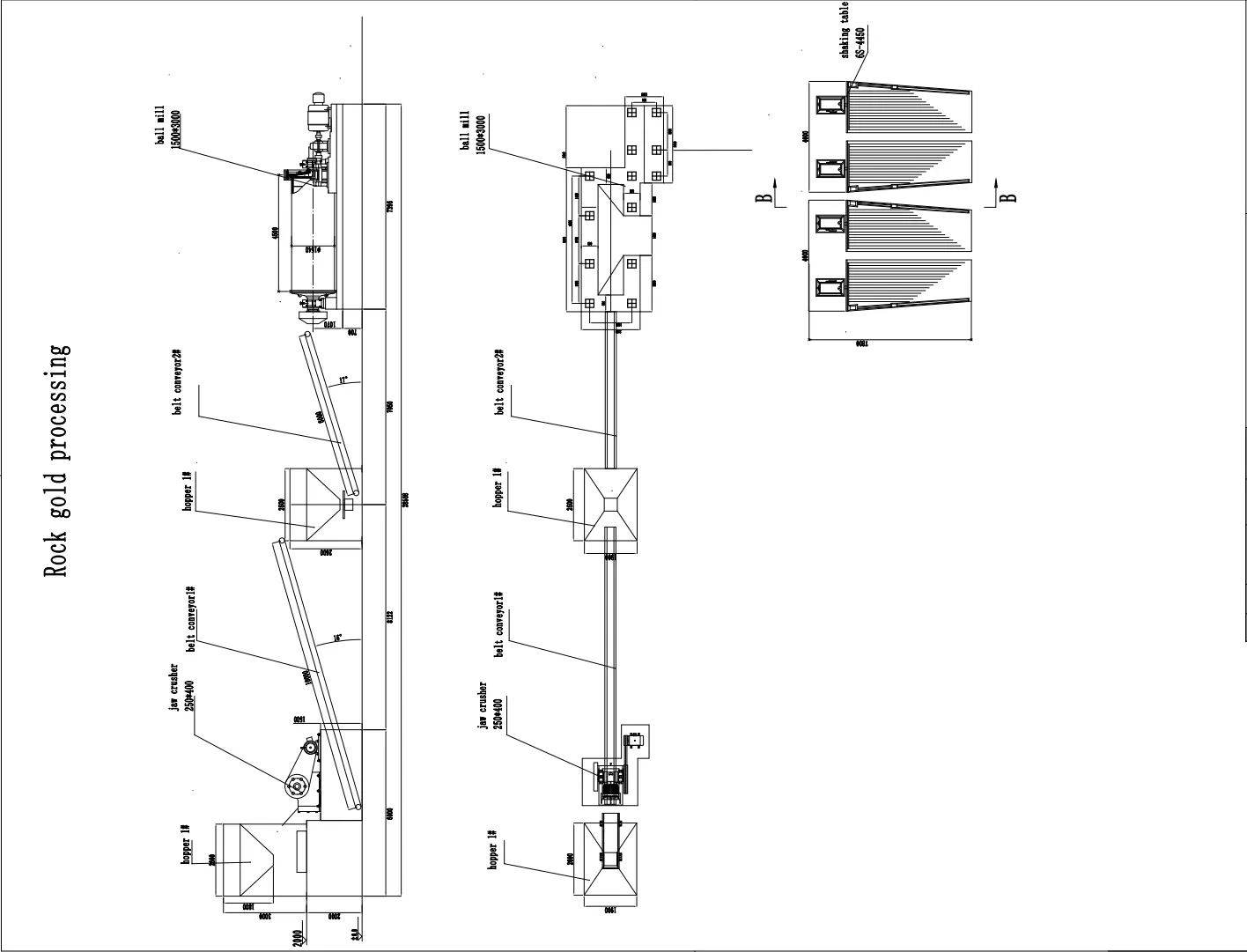

작업 라인 설계도 :

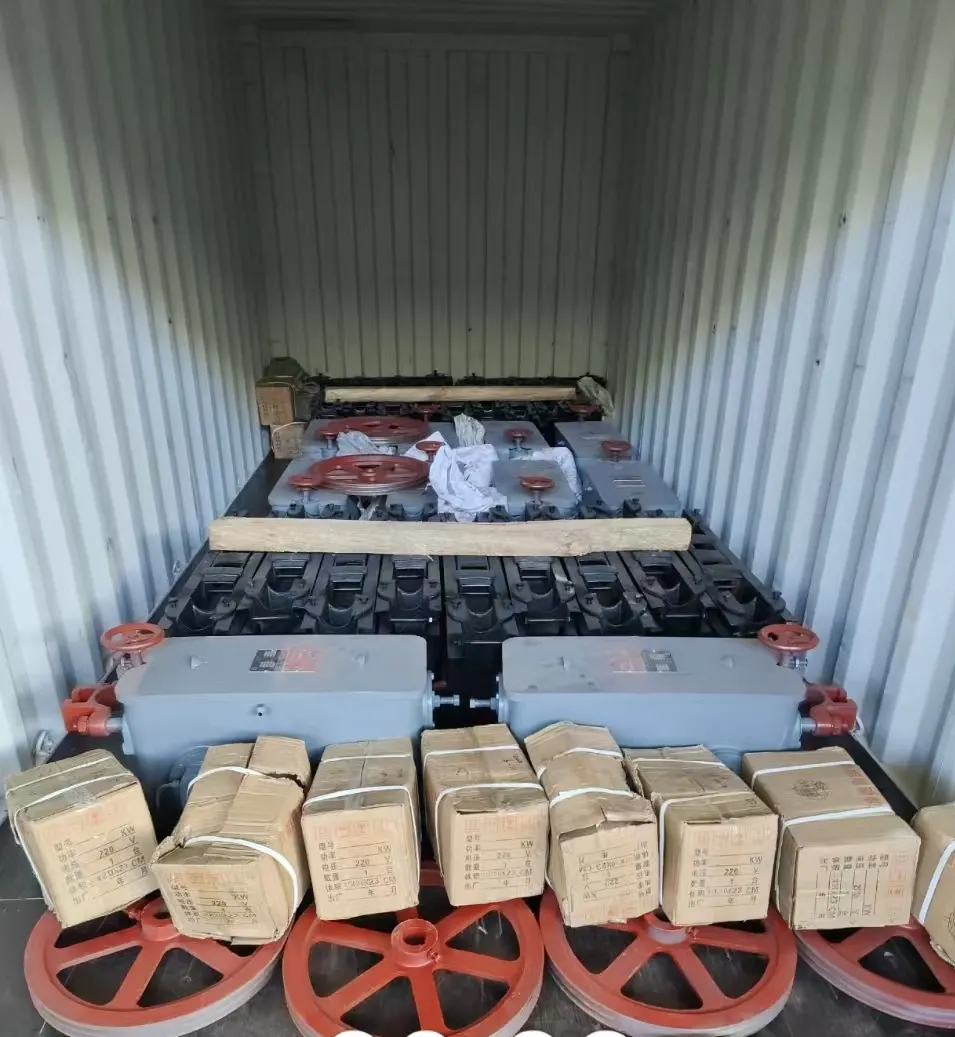

-발주 진행 :
